Jack of all trails

Flow, tech, or steeps — Fuel is up to get down. This trail ripper features ultra-adjustable geometry that lets you choose your own adventure, whether you’re after a stoic trail tamer, rowdy MX ride, or enduro-ready beast. Three build options and endless tweaks mean you can get a ride that’s fine-tuned for your style and stomping grounds. Wherever the trail leads you, Fuel is ready to send.

Fuel EX and Fuel+ EX

With 29” wheels and 145/150 mm (rear/front) travel, EX is the classic configuration. Riders get the most efficient pedalling and most balanced handling – making it the right bike for the widest variety of riders and terrain. That’s why most Fuel and Fuel+ bikes will come standard as Fuel EX.

Better geometry

The new Fuel and Fuel+ come in five sizes dialled to fit any rider – from tiny to tall. We’ve simplified the line by removing the ML size, re-distributing the spread of the other sizes to better fit more riders with fewer sizes, while keeping size-specific geometry and chainstays for a better ride, whatever your height. We’ve also modernised our stack height by using taller head tubes on larger sizes, raising the front end of the bike up so taller riders get more comfort and control without having to run a stack of spacers or high-rise bars.

Massive dropper insertion

The new frame design on the Fuel and Fuel+ lets most size M riders run a 200 mm dropper

Open triangle

Tons of room for big water bottles, Range Extenders on Fuel+, or additional accessories like frame bags or mini-pumps

ZS standard headset

The Fuel and Fuel+ now use the ZS internal headset standard to allow for more aftermarket options like angle-adjust headsets or shiny colours.

Leverage rate adjust

Riders can tweak leverage rate with the flip of a chip. Go less-progressive for a plusher feel or more-progressive for big features, more bottom-out resistance or running a coil shock.

Load up, roll out

Stash ride essentials with in-frame storage on all Fuel* models – both carbon and alloy. Plus, top tube accessory mounts on Fuel and Fuel+ let you load up even more.

*No internal frame storage on the Fuel+

Fuel+ EX 9.7 je karbonski e-MTB koji nudi prilagodljivost za bilo koju vrstu staze i bilo koji stil vožnje. Opremljen je glatkim i tihim električnim motorom TQ HPR60 s baterijom od 580 Wh za duže vožnje. Dobivate savršenu ravnotežu cijene i performansi, s komponentama kao što su prednja suspenzija Fox Rhythm 36, stražnja suspenzija Fox Performance Float X, grupa mjenjača SRAM Eagle T-Type i Bontrager Line podesivu cijev sjedala, tzv. 'dropper'.

Rama:	OCLV Mountain Carbon, removable battery, angle-adjust headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker links, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
Prednja vilica:	Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel
Zadnja suspenzija:	Fox Performance Float X, 2-position damper, 205 mm x 60 mm
Prednja glavčina:	Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
Zadnja glavčina:	Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, SRAM XD freehub, Boost148, 12 mm thru axle
Obruči:	Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
Gume:	Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50' (Size S: 27.5x2.50')
Ručice mjenjača:	SRAM Eagle 70, 12-speed
Zadnji mjenjač:	SRAM Eagle 70, T-Type
Pogon:	SRAM EAGLE 70, 160 mm length
Lančanik pogona:	SRAM T-Type, 32T, alloy
Kazeta:	SRAM Eagle XS-1270, T-Type,10-52, 12-speed
Lanac:	SRAM Eagle 70, T-Type, 12-speed
Sjedalo:	Bontrager Verse P3, chromoly rails
Cijev sjedala:	Bontrager Line Dropper, MaxFlow, internal routing, 34.9 mm (Size: S: 150 mm travel, 410 mm length; Size: M: 170 mm travel, 450 mm length; Size: L, XL: 200 mm travel, 515 mm length)
Kormilo:	Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
Navlake kormila:	Trek Line Elite, lock-on
Lula kormila:	Bontrager Elite, 35 mm, 0-degree, 45 mm length
Garnitura vilice:	FSA Orbit, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom, 1.5 crown
Kočnice:	SRAM DB 8 4-piston hydraulic disc
Baterija:	TQ 580Wh
Prikaz:	TQ LED display with Bluetooth & ANT+ connectivity
Motor:	TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Težina:	M - 19.73 kg / 43.5 lbs (with TLR sealant, no tubes)
Godina modela:	2026

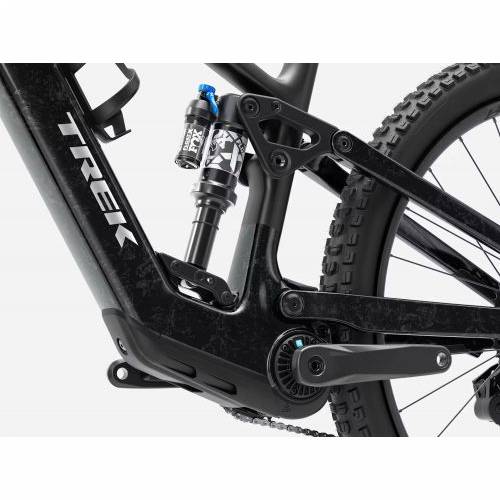

BICIKL TREK e-Bike FUEL+ EX 9.7 M CARBON SMOKE/LITHIUM GREY MARBLE, TQ-HPR60 /  580WH / 2026

Boja:
Veličina:

• M

Namjena: FULL SUSPENSION
Materijal: CARBON

Kategorija: MOUNTAIN BIKE - MTB
Proizvođač: TREK
